S2 brake lights
Section titled “S2 brake lights”Modes:
- LOW: lower brightness (constantly on by default), works on 6-12V provided to pin 2
- HIGH: high brightness (breaking indicator), works on 12V provided to pin 3, overrides LOW
Specs:
- 6 - 12V
- ~0.16W @ 6V-LOW , ~1.72W @ 12V-HIGH
- LED

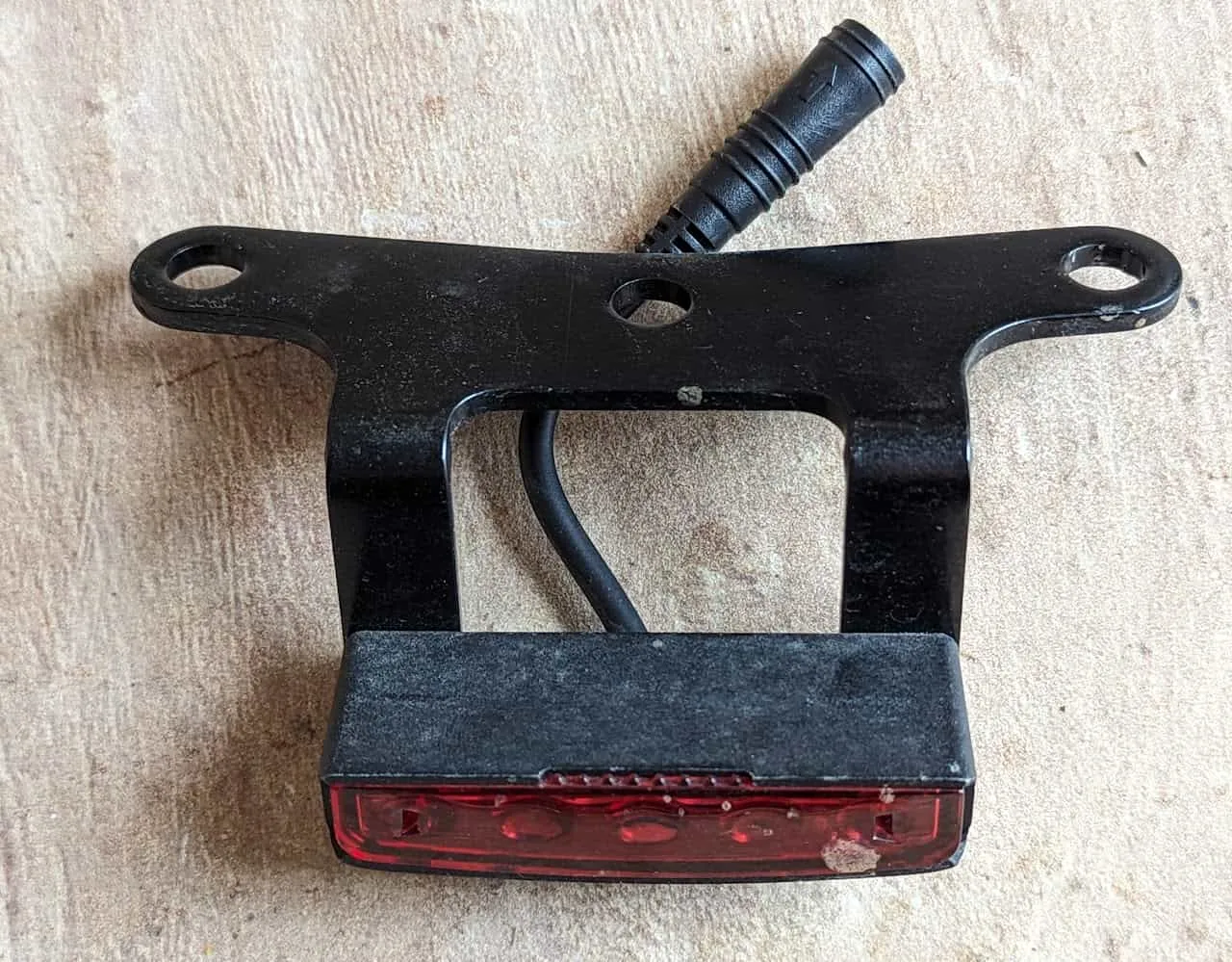

The brake light front

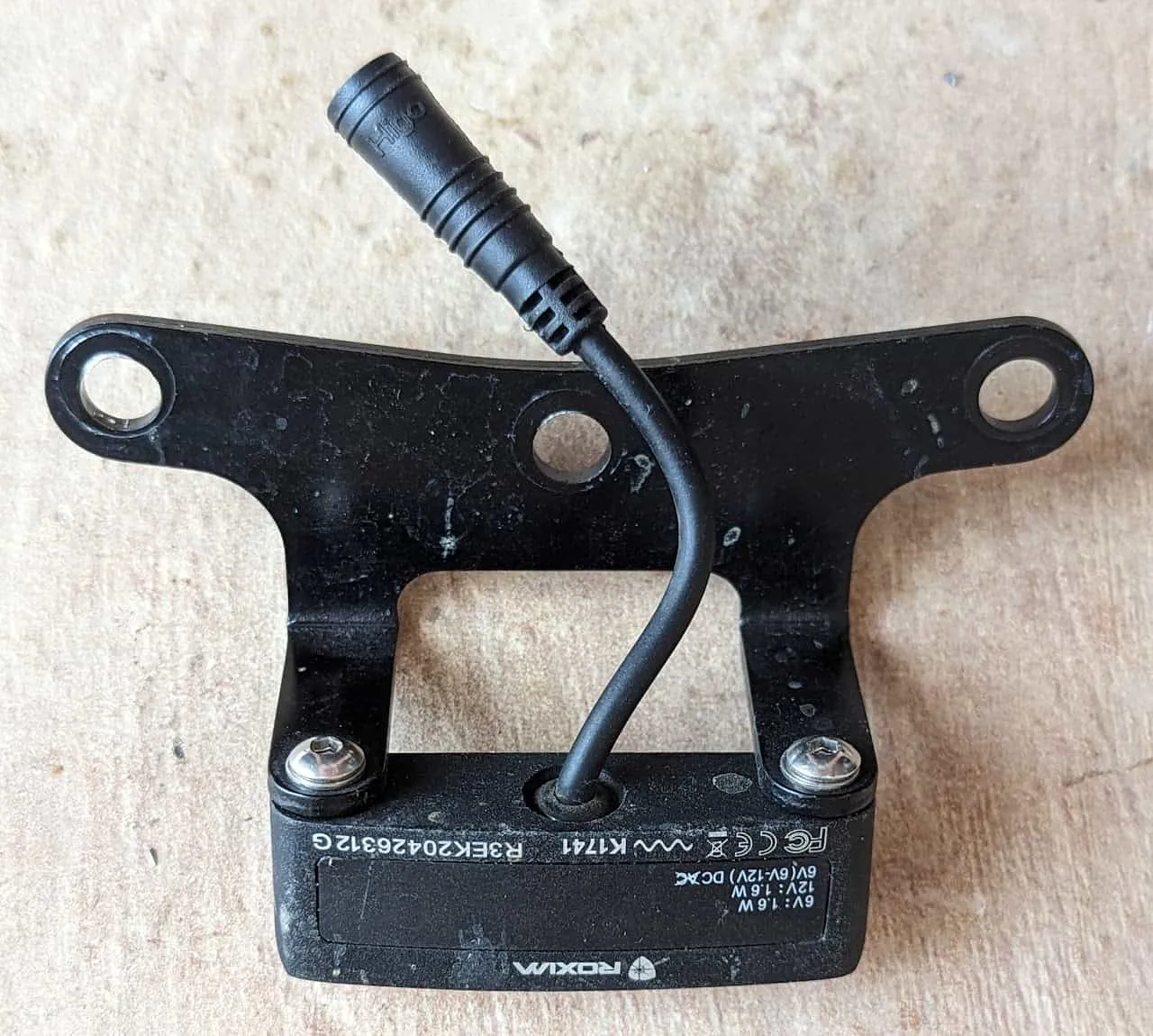

The brake light back

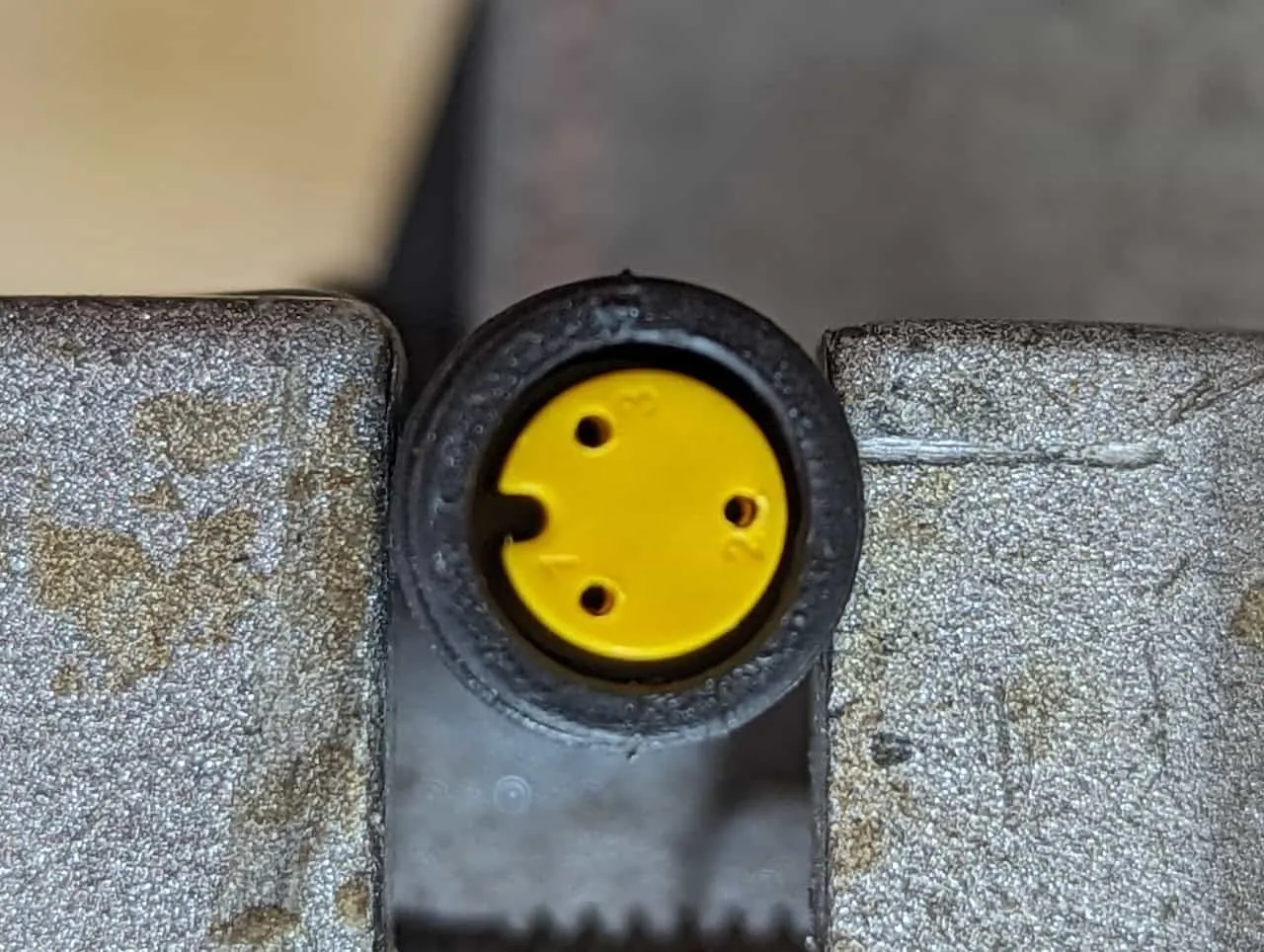

12V Module connector

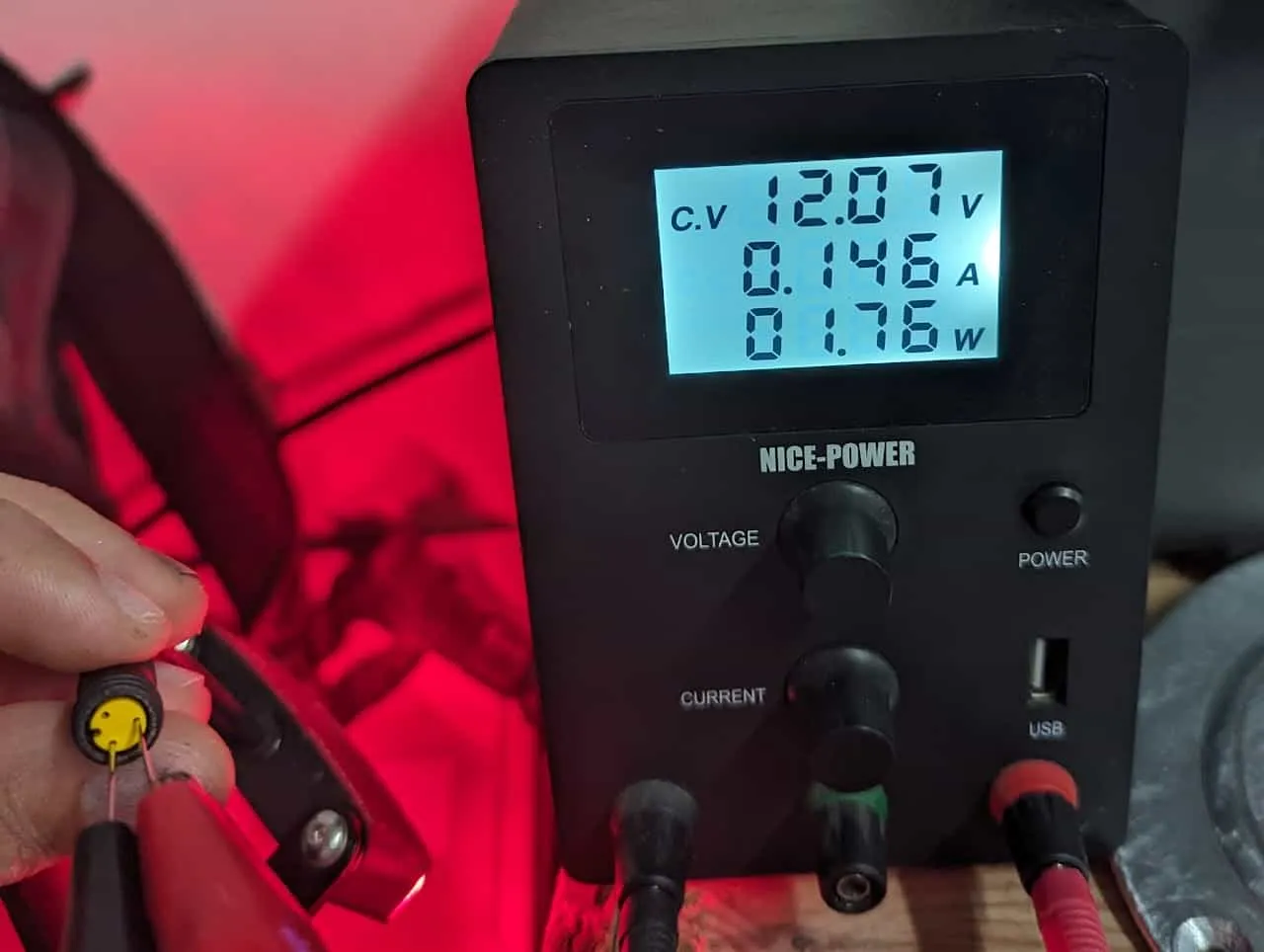

Power draw 12V high mode

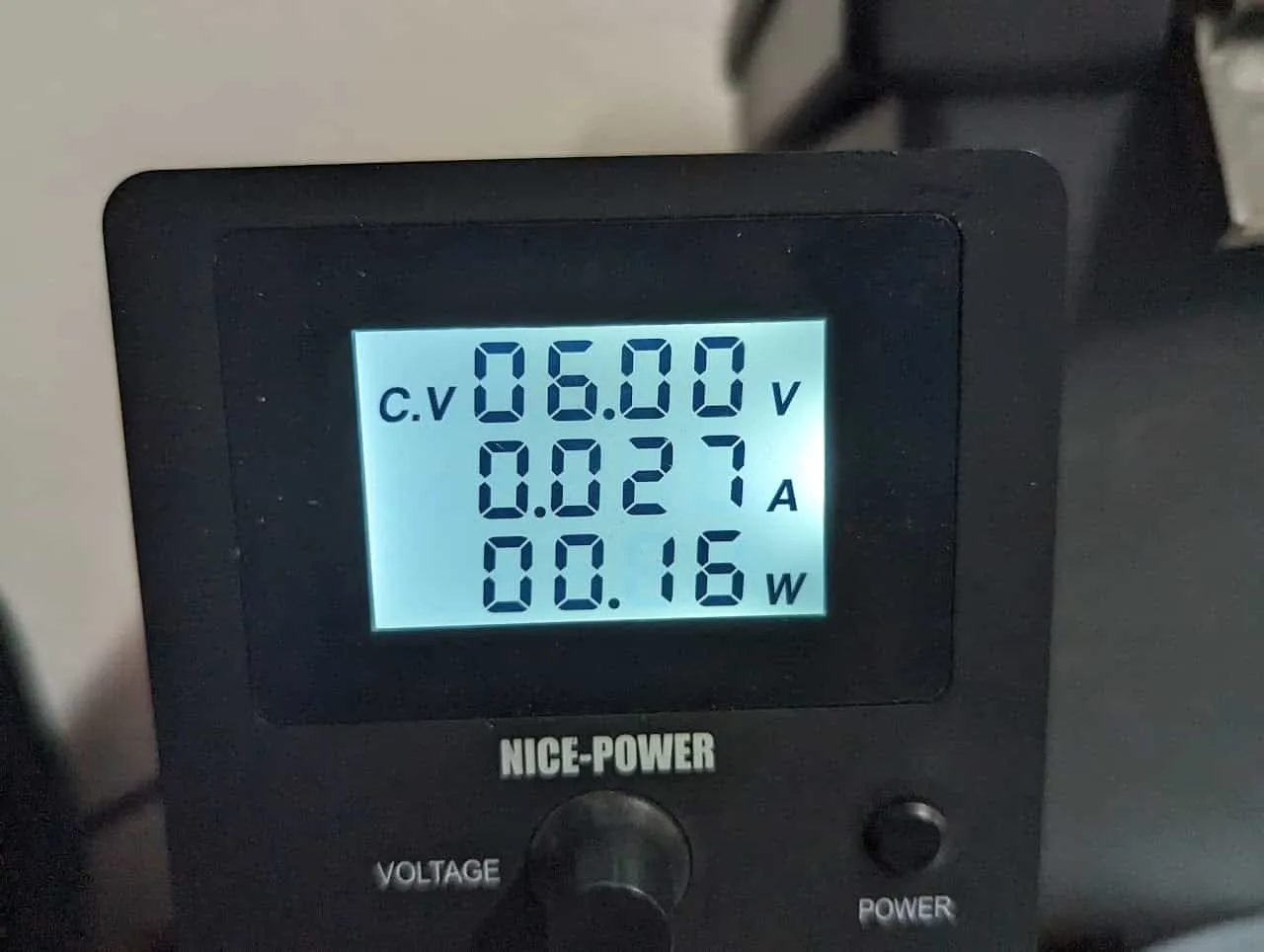

Power draw 6V low mode
- GND
- 12V HIGH
- 6-12V LOW
