12V Module
This module is attached to the main controller and converts the controller’s 48V to 12V. It manages all 12V peripherals and is controlled through a CAN bus.
- Marked: “SUPER73_DC_DC_V20” “210118231”
The module will not output 12V at all unless its CAN bus is connected to the controller, even if provided with 48V. Hence, it can’t be used in an aftermarket setup.

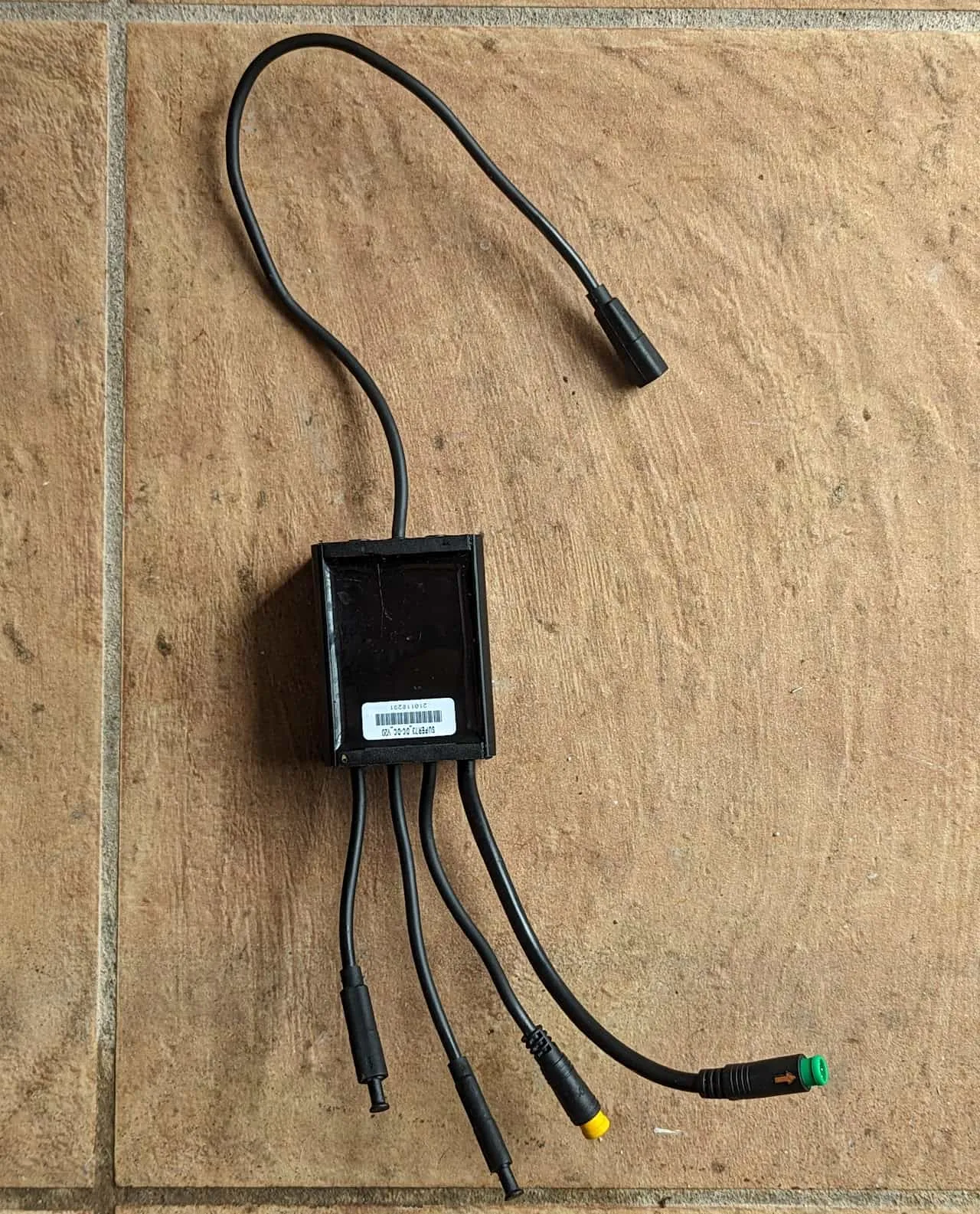

The 12V module
12V Harness connector

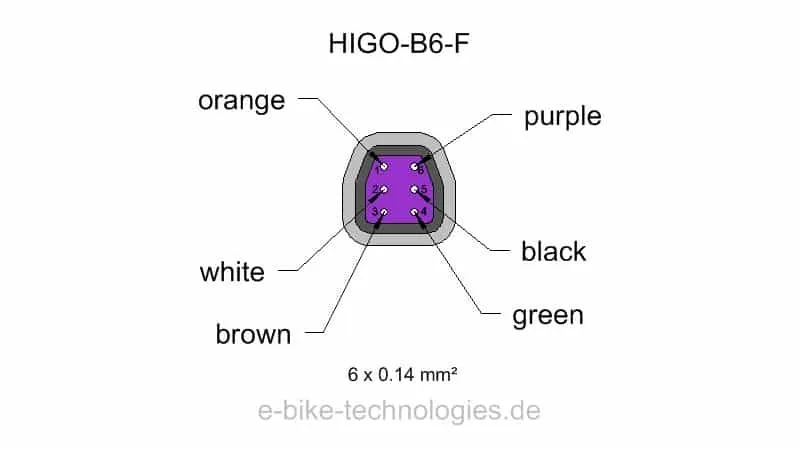

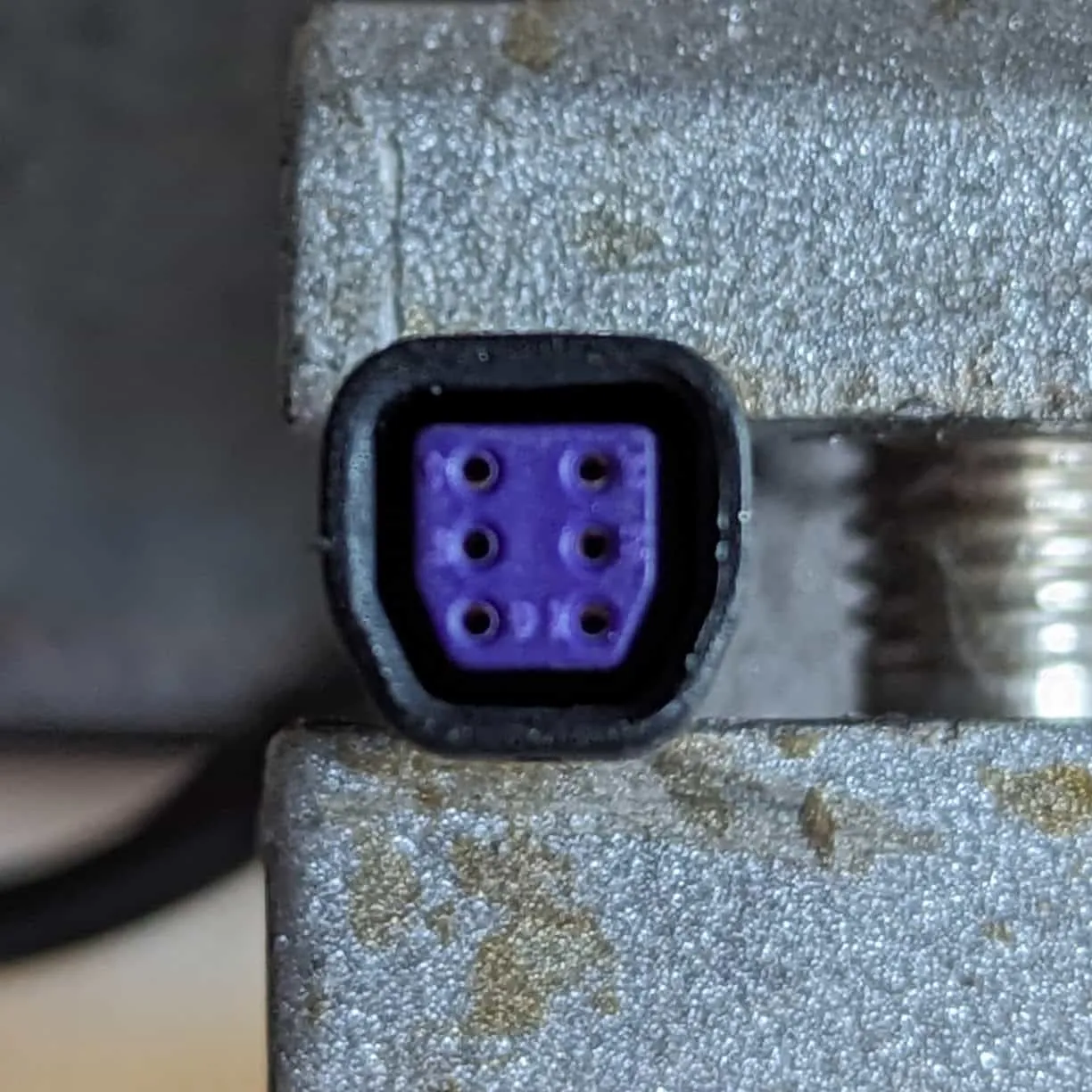

Controller connector
Rear brake light connector
Turn signal connectors (unused)
- Unknown
- CAN L
- GND
- Battery + (common with controller, debug 1)
- CAN H
- Turn signal
- Signal 2
- Horn
- Unknown
- GND
- Signal 1

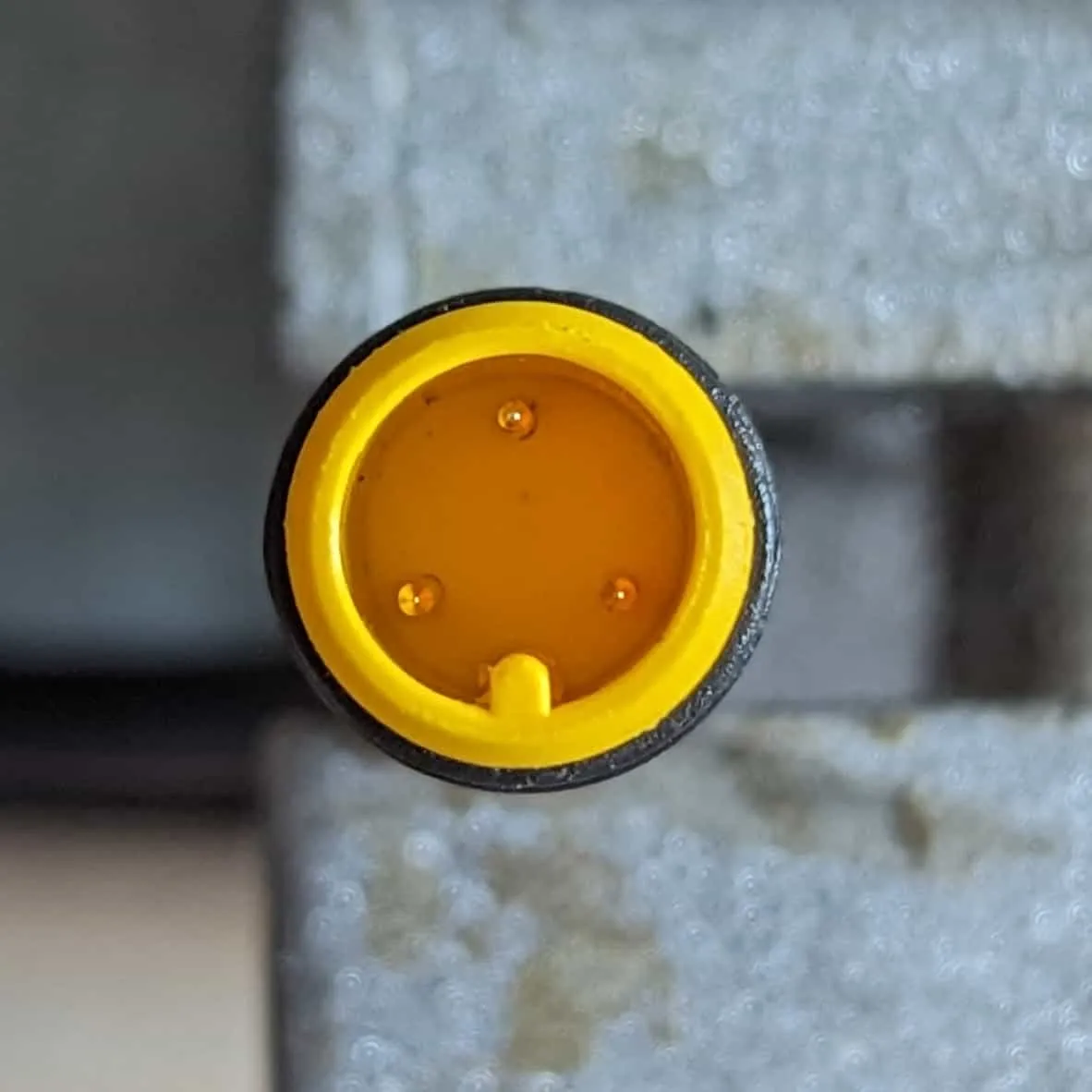

Rear brake light connector
Section titled “Rear brake light connector”- Ground
- Signal
- 12V

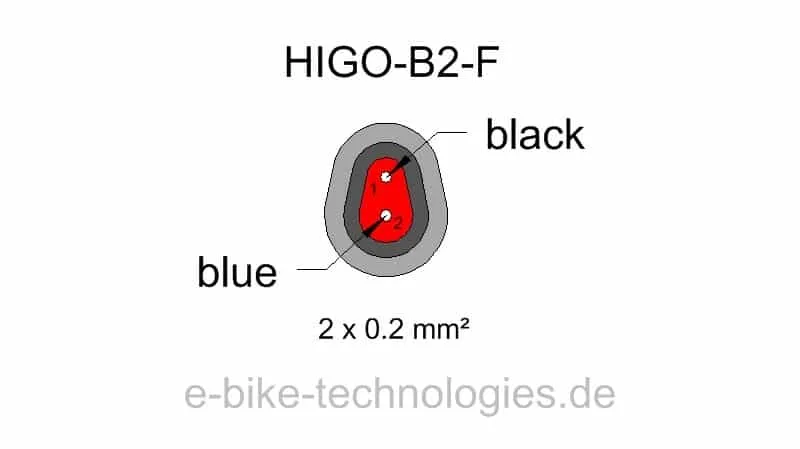

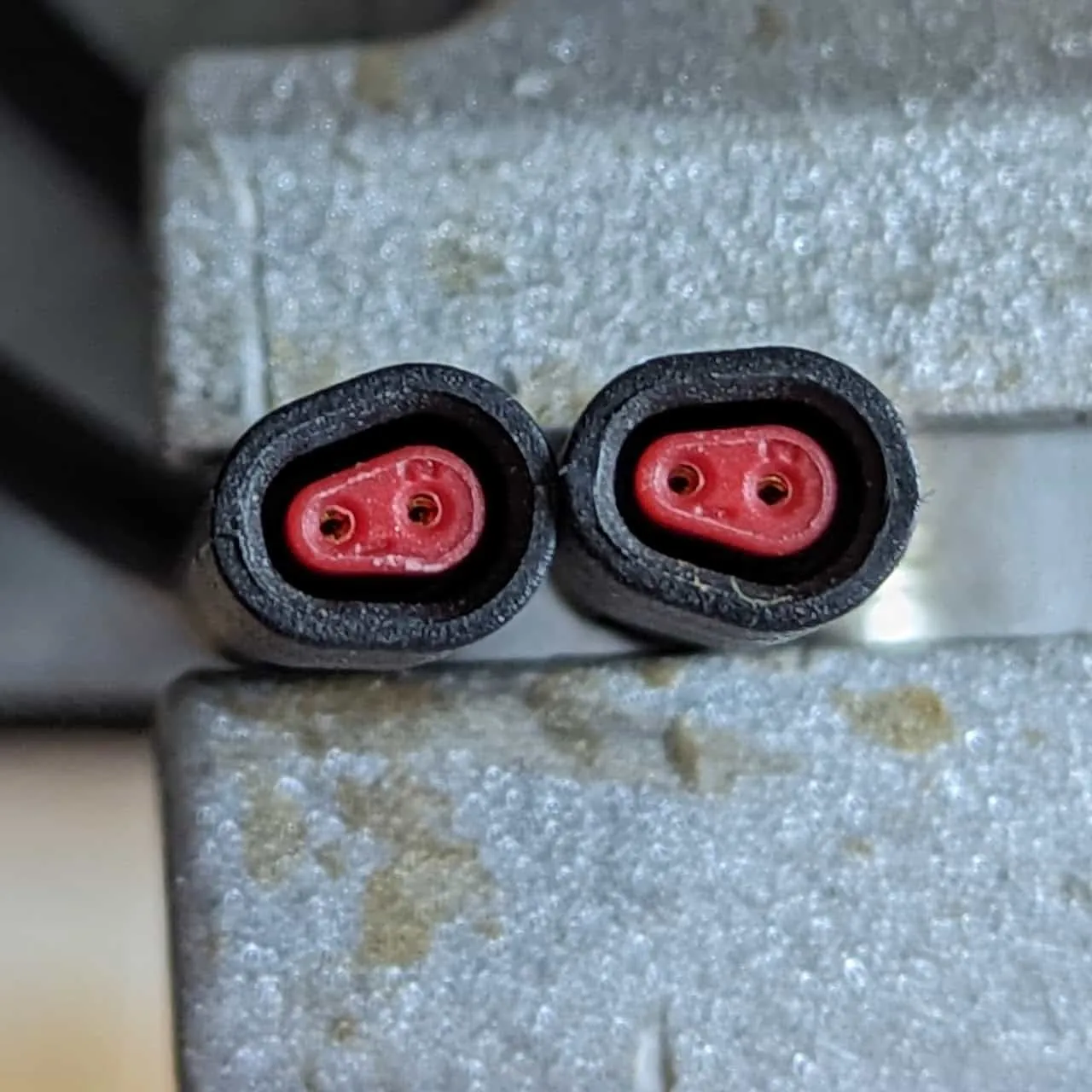

Turn signal connectors (unused)
Section titled “Turn signal connectors (unused)”- GND
- 12V
