PAS Sensors
Cadence sensor
Section titled “Cadence sensor”Standard in US RX bikes.

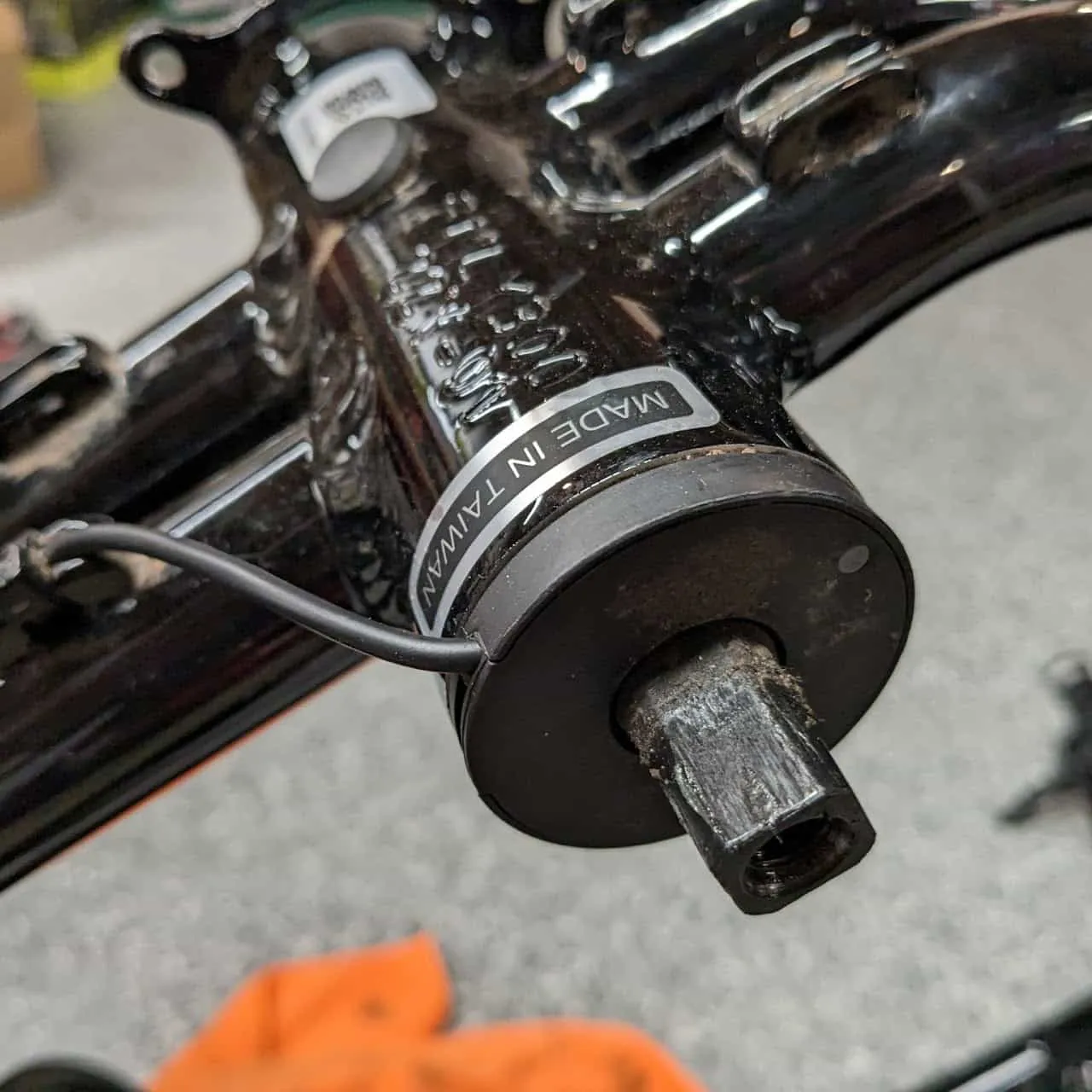

Installation position. Red light will turn on when bike is on and cranks are turned.

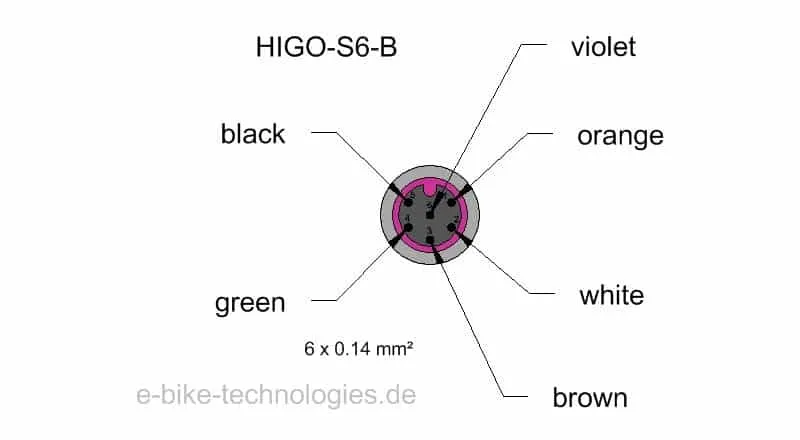

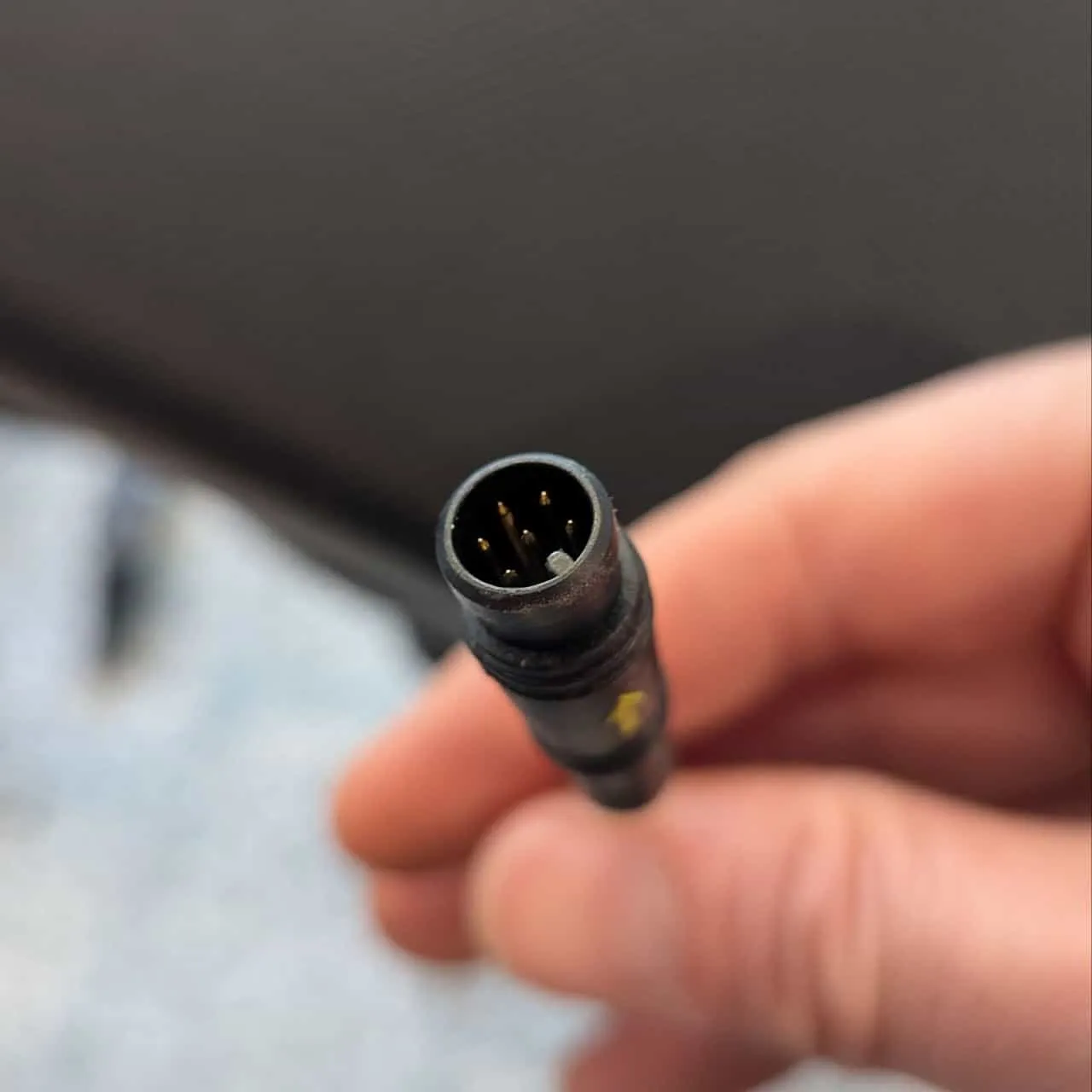

6 pole Higo Mini B connector

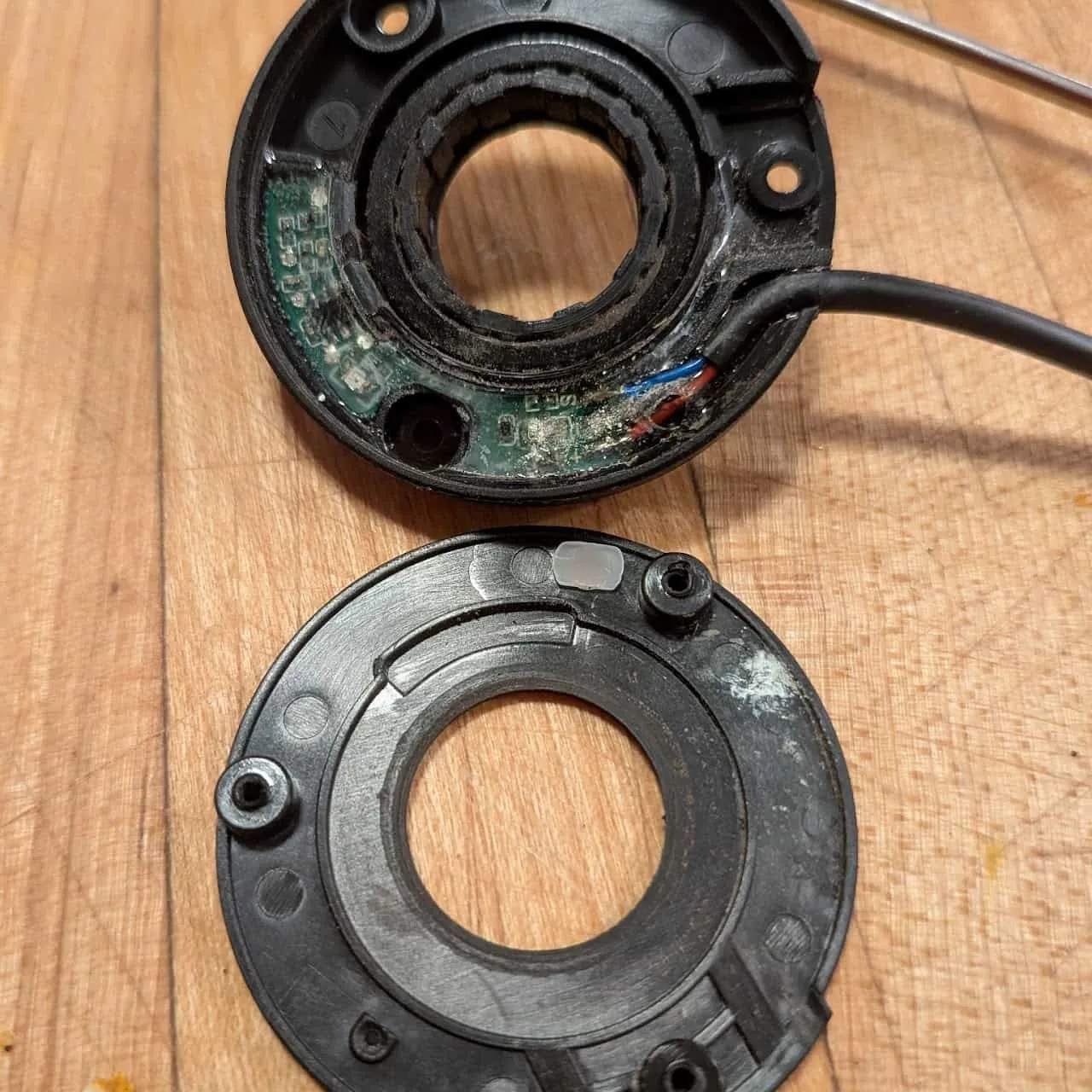

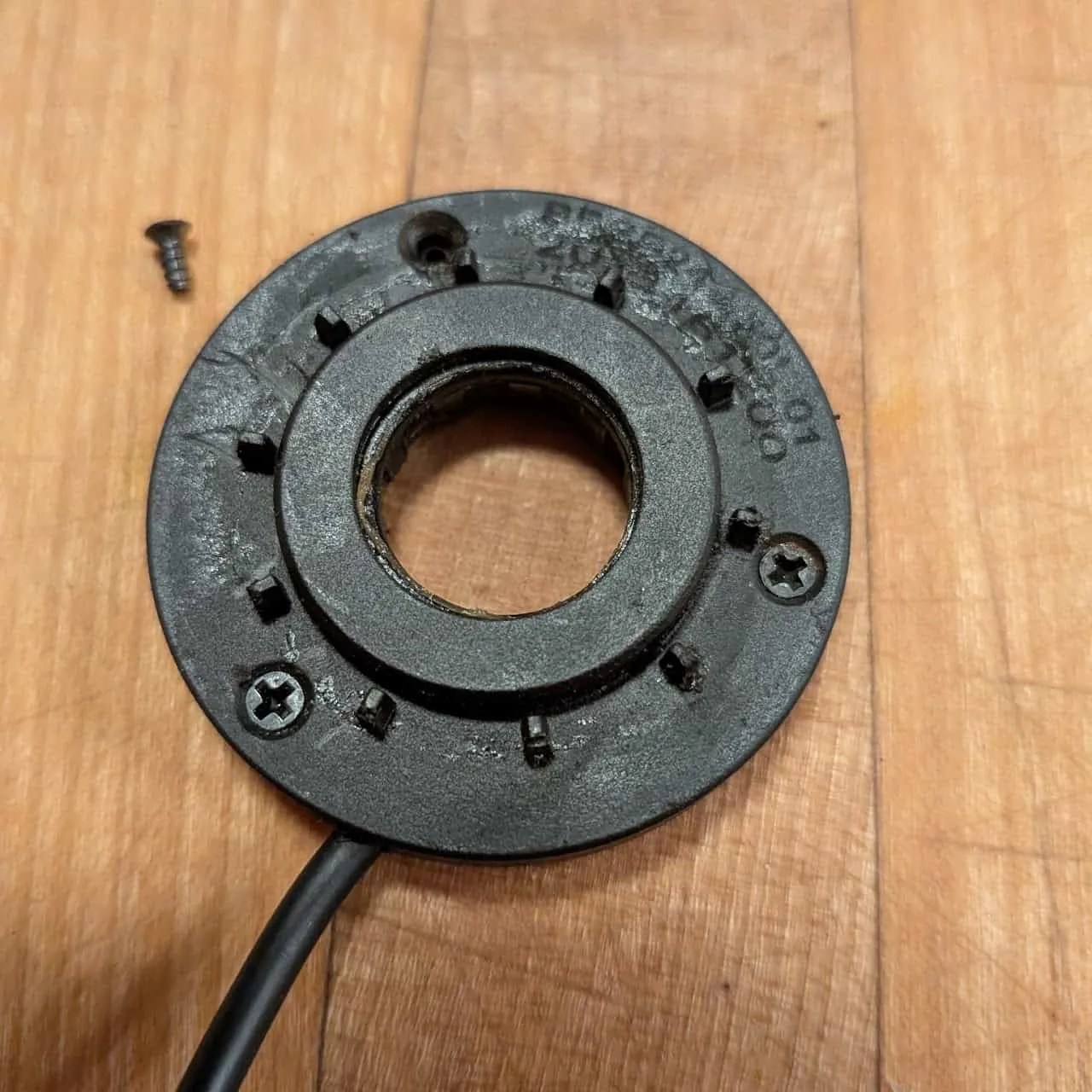

Faulty sensor, note the rust, part number BBSS24-L50L-01
That white stuff is good, right?
Cadence Sensor Failure
Section titled “Cadence Sensor Failure”They don’t like water.
Torque Sensor
Section titled “Torque Sensor”

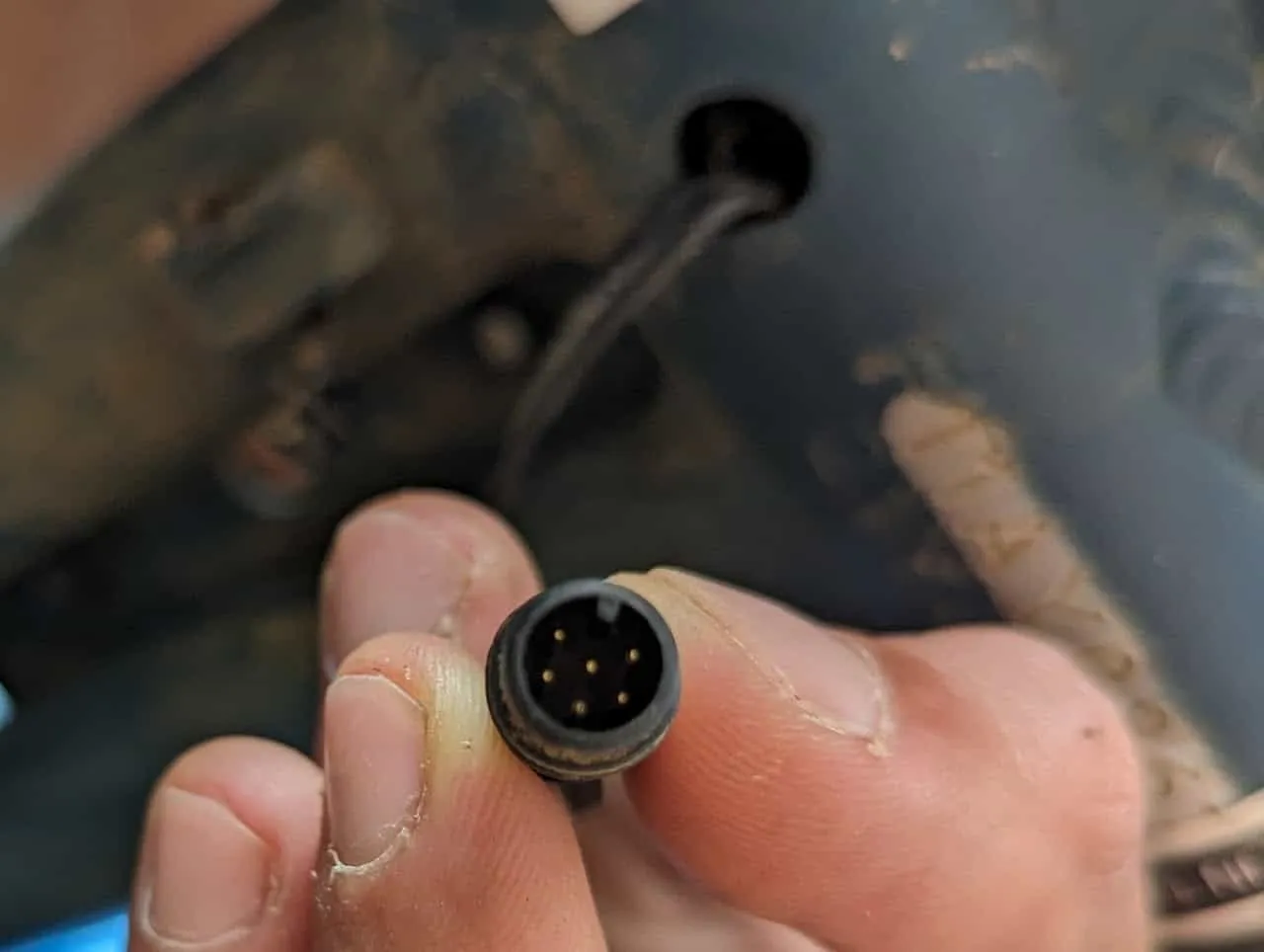

Torque sensor connector
Section titled “Torque sensor connector”- Unknown (~5V)
- Unknown (~5V)
- Unknown
- Unknown (~6V)
- GND
- Unknown (GND?)
