Battery Cradle

Teardown

The Battery Cradle secures the battery to the bike and connects it to the controller.

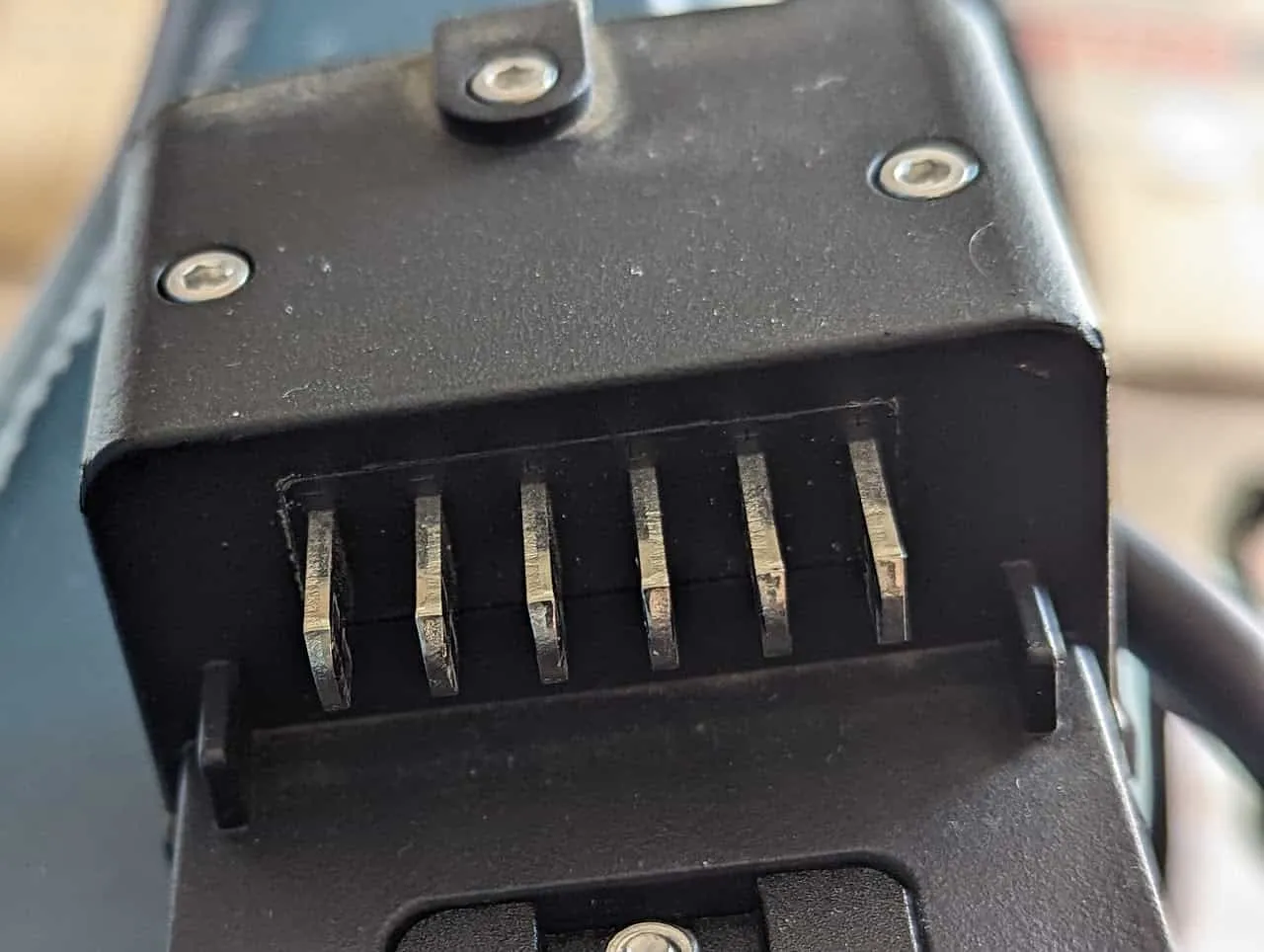

• Interface

  • 6 male pins labeled - - H L + +

    1. thick black - negative
    2. thick black - negative
    3. green - CAN bus CANH
    4. blue - CAN bus CANL
    5. thick red - positive
    6. thick red - positive

  • Cable - L615AM Female

    1. https://www.higoconnector.com/products/l615am-p-00-dc-1000/hw99K#title

• Screws

  • 4 x ?? (3mm hex) - frame
  • 3 x ?? (2.5mm hex) - cradle

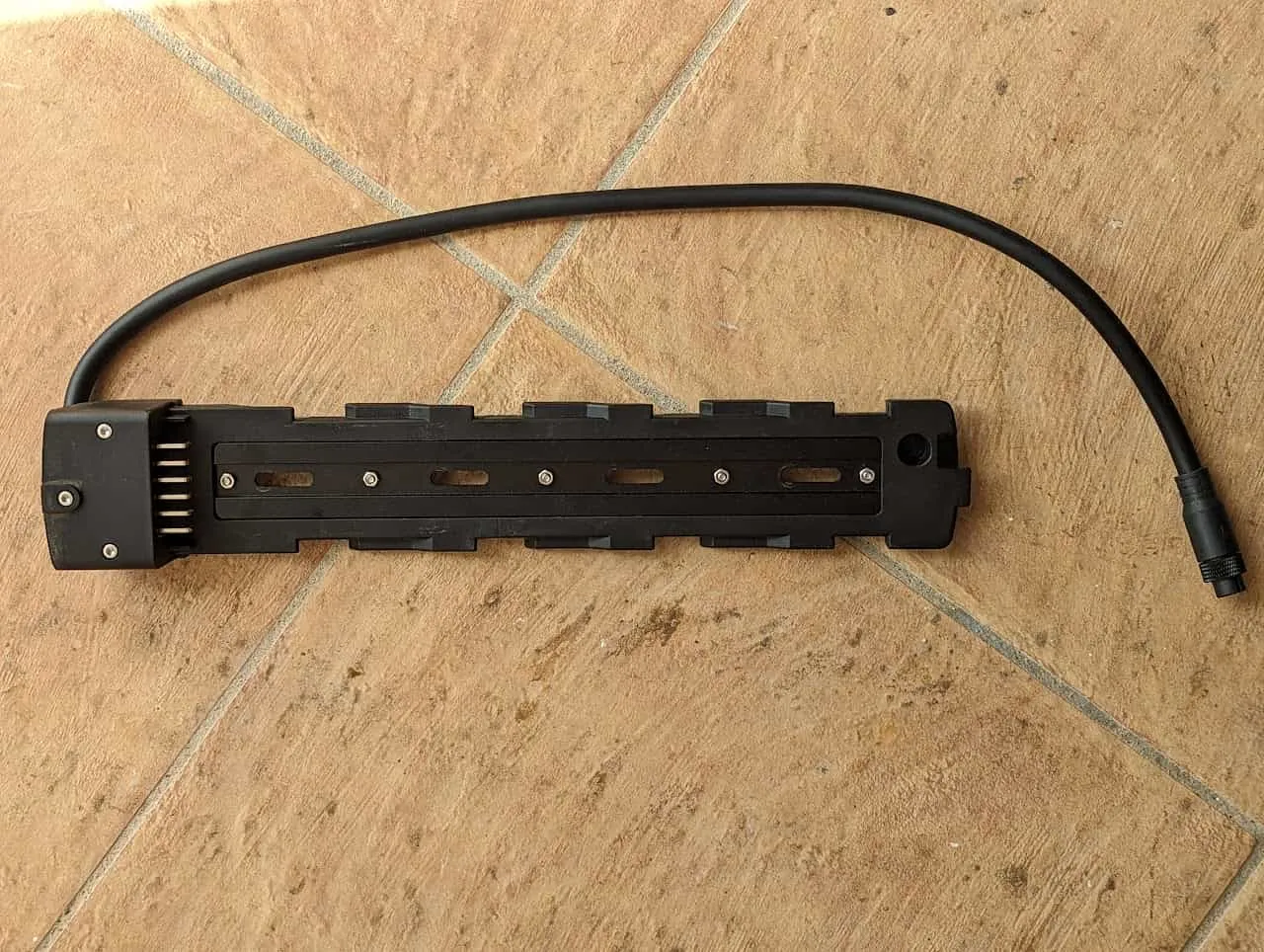

Battery Cradle Top

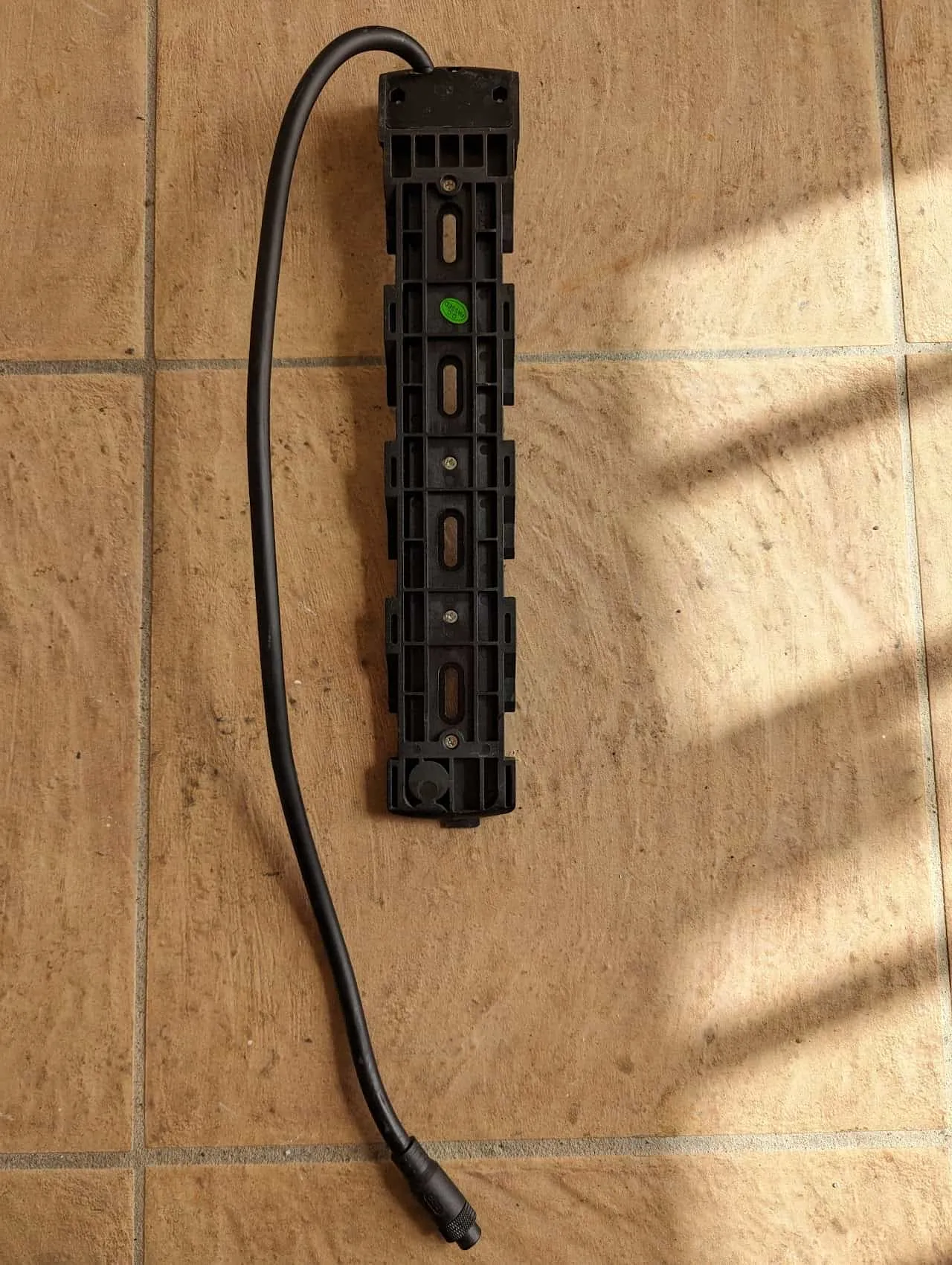

Battery Cradle Bottom

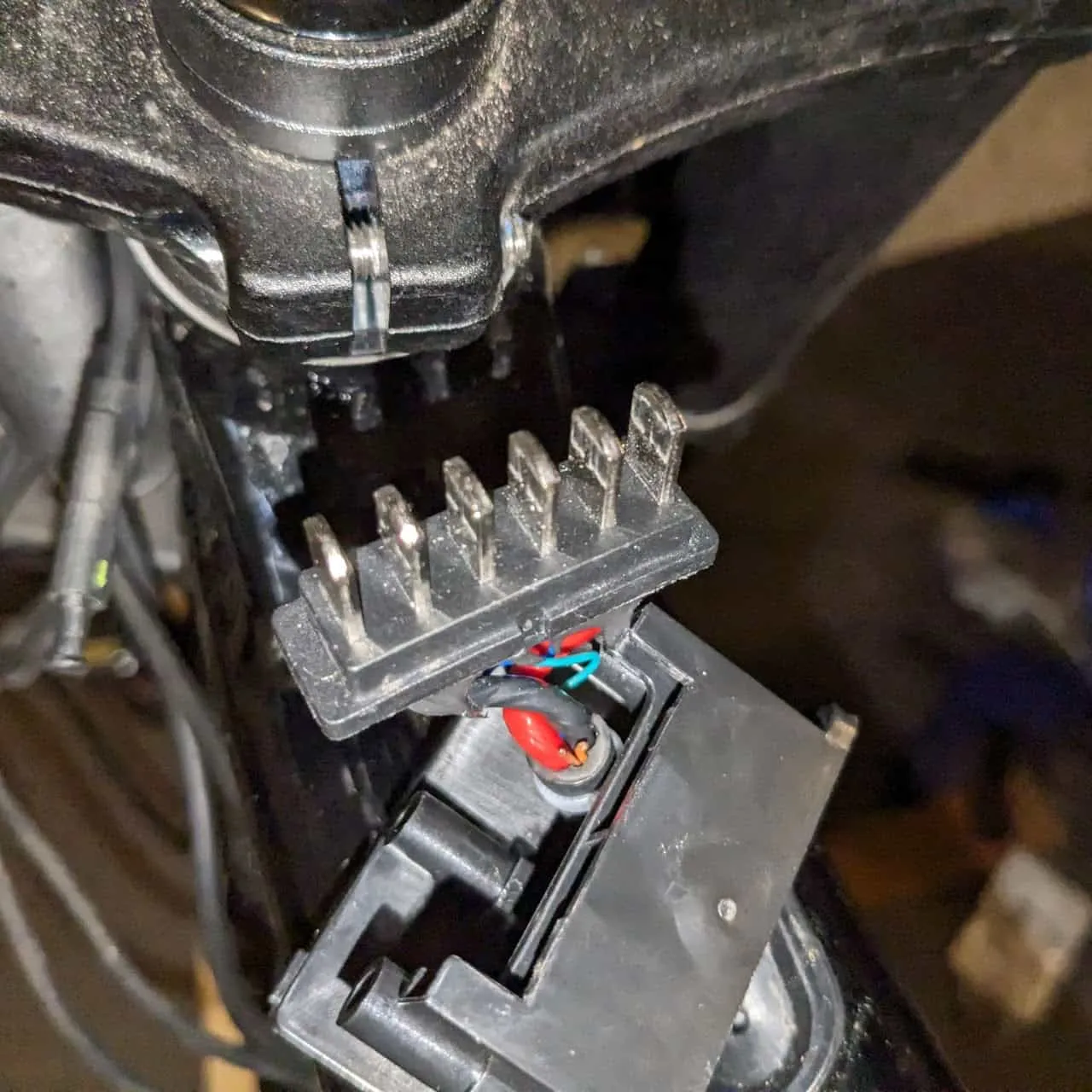

Battery Cradle Blades

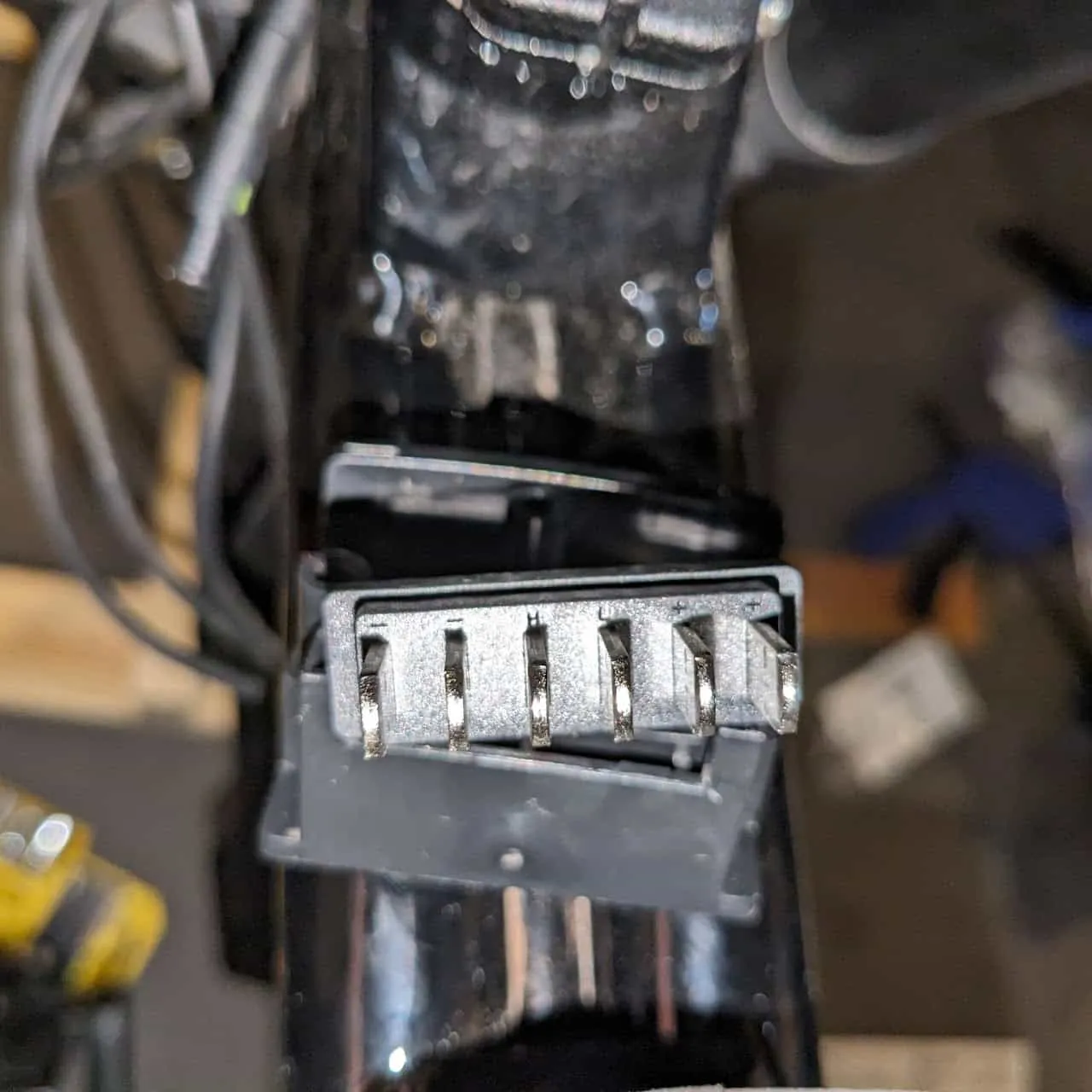

Battery Cradle Blades detail, partial disassembly

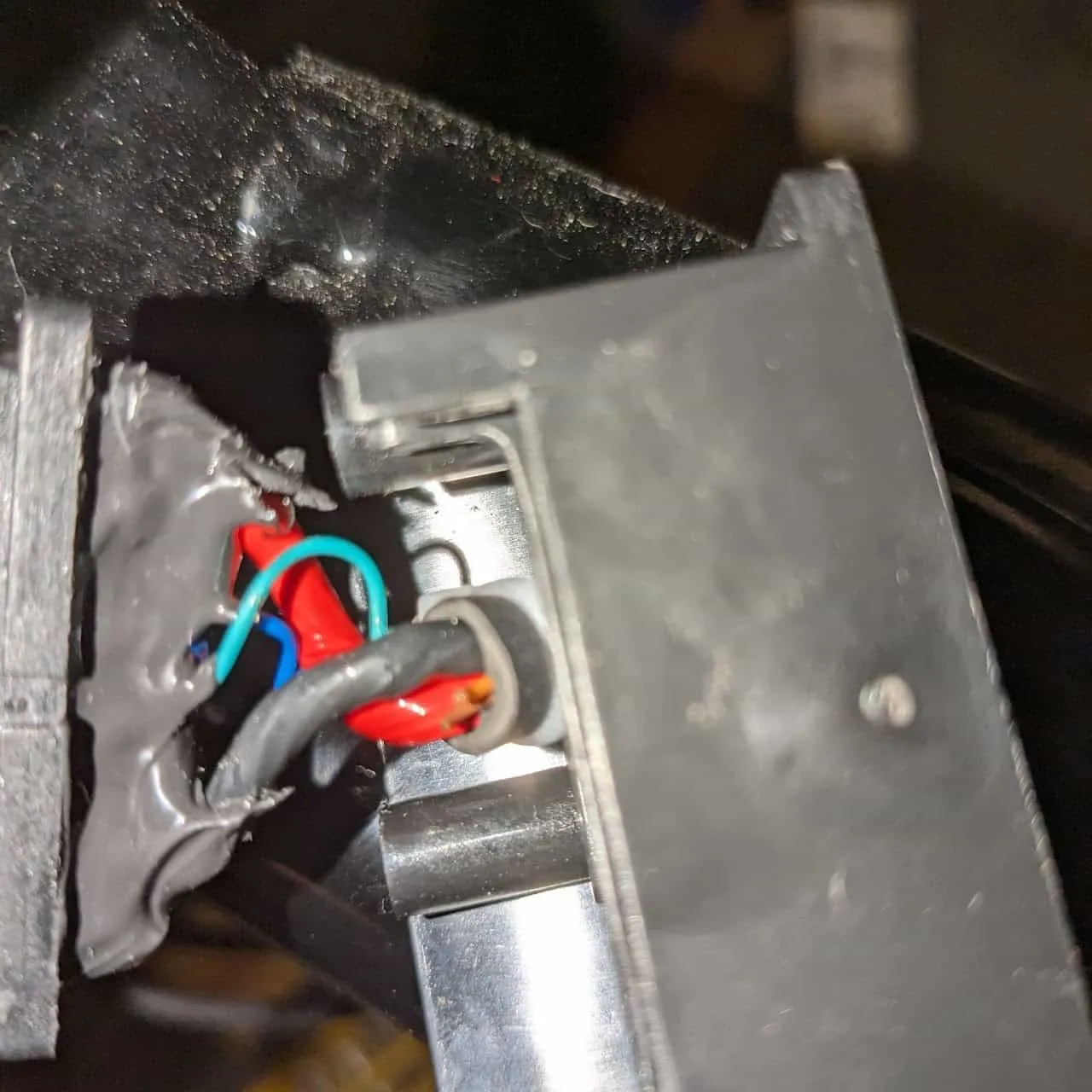

Battery Cradle Blades detail, partial disassembly

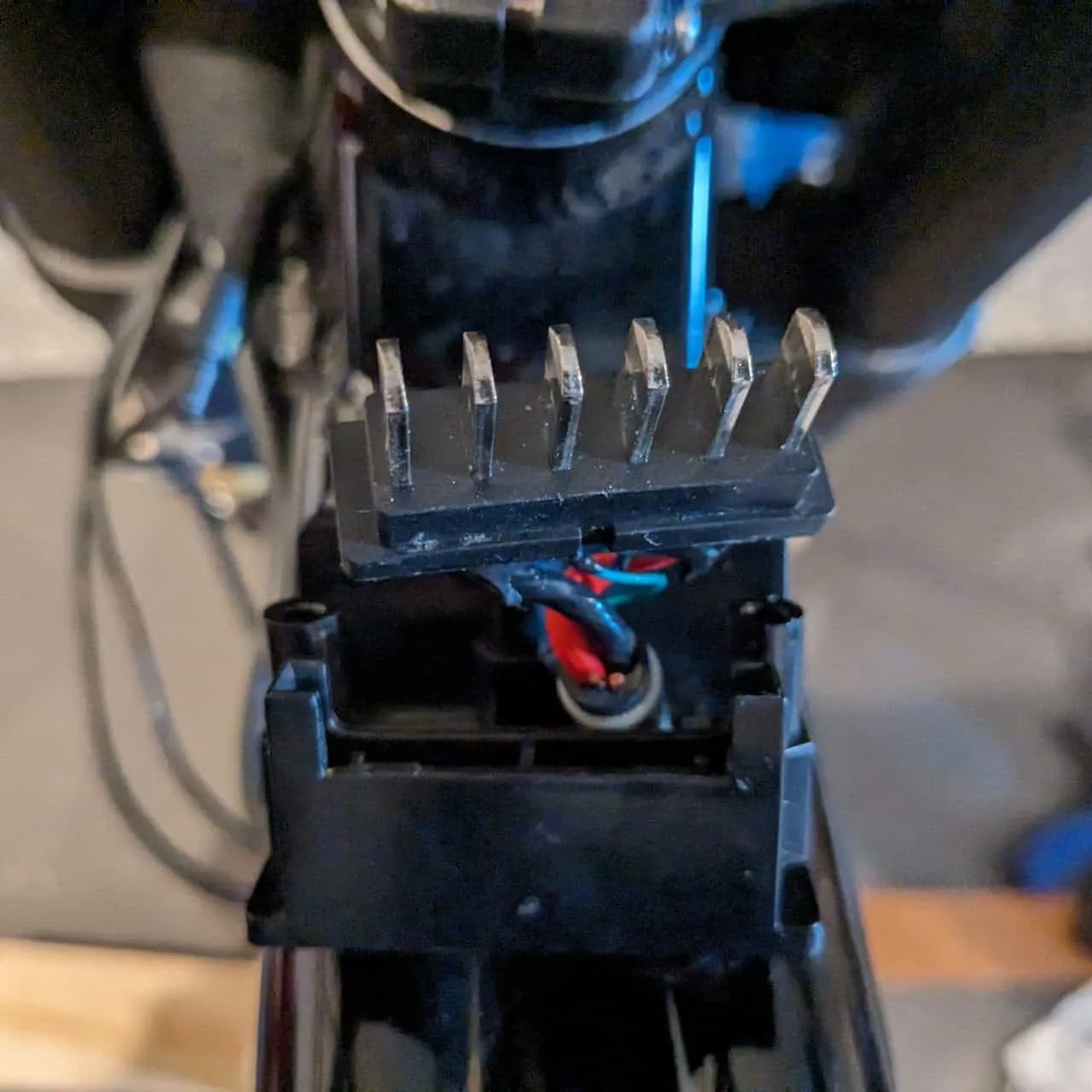

Battery Cradle Blades detail, partial disassembly

Battery Cradle Blades detail, partial disassembly

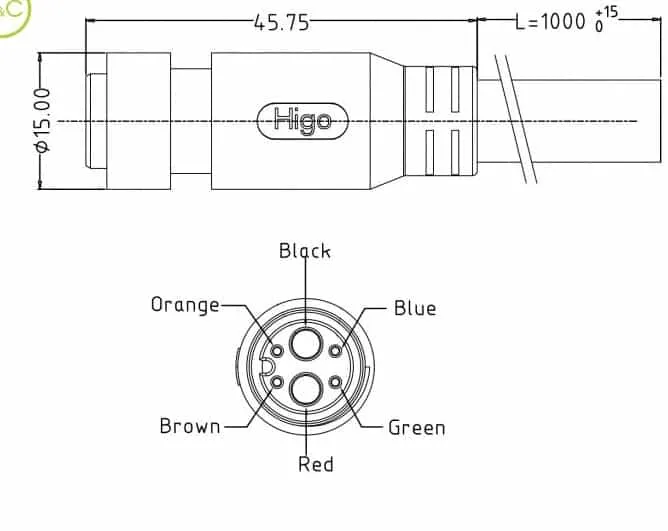

Controller connector

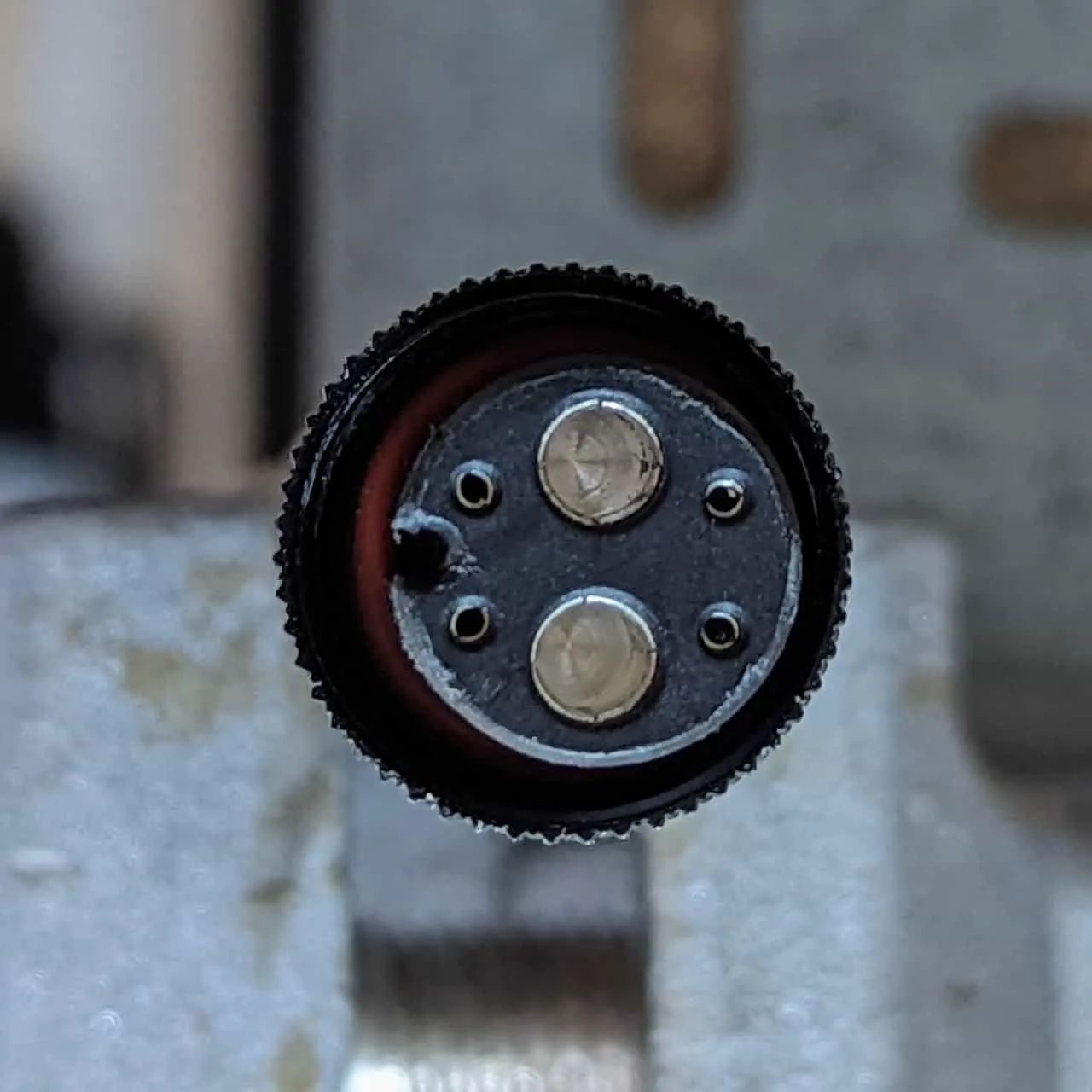

Controller connector

1. Orange - Unused
2. Brown - Unused
3. Black - Negative
4. Red - Positive
5. Blue - CAN L
6. Green - CAN H
